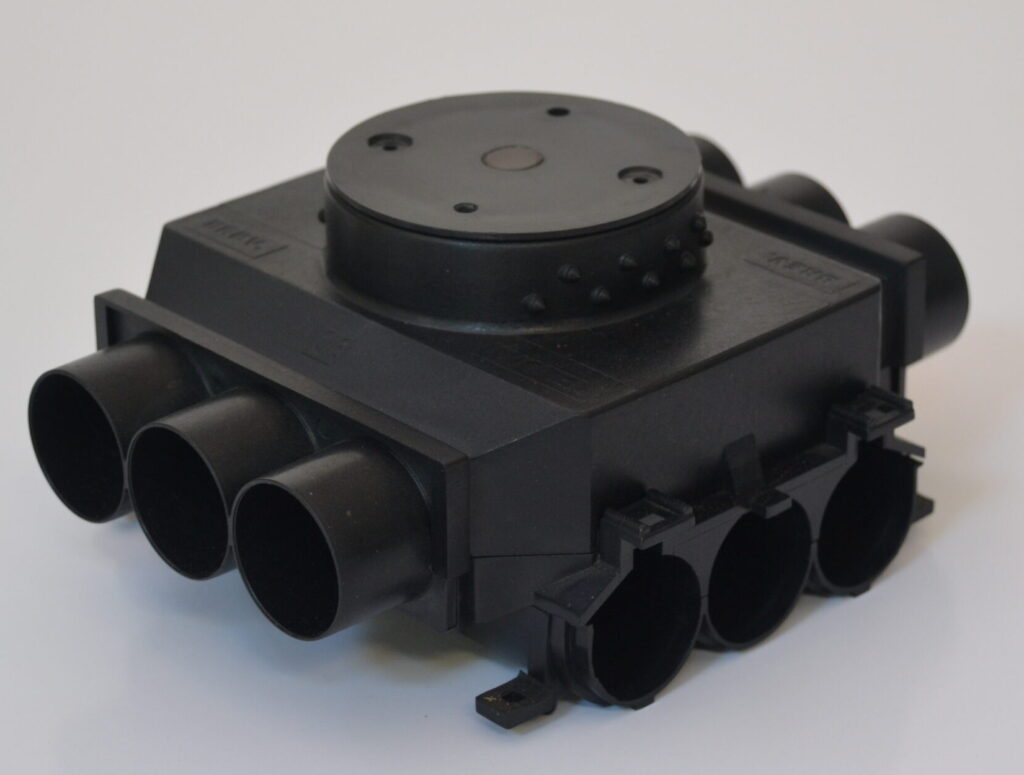

MINTEL produces a patented recessed floor box that, once connected to others, allows the distribution of 2 or 3 backfeed power cables in ø25 tubes for individual systems without interference, with the possibility of transverse interconnections.
In the design, the entire surface of the room must be divided by a grid of connection points, whose arrangement will ensure power supply and connections for telecommunications at each workstation with any layout or future furniture reorganization.
In practice, it has been observed that a grid with a side ranging from 2.20 to 2.60 meters can meet the needs of environments intended for the tertiary sector. In the case of floor distribution with a 70×30 mm channel, the connection between wall junction boxes and the first MINTEL boxes, prepared with tube inlets on one side and channel inlets on the other, is made with ø25 mm tubes.
The boxes should be installed, ensuring that the threaded socket is at the height determined based on the planned floor finish.
