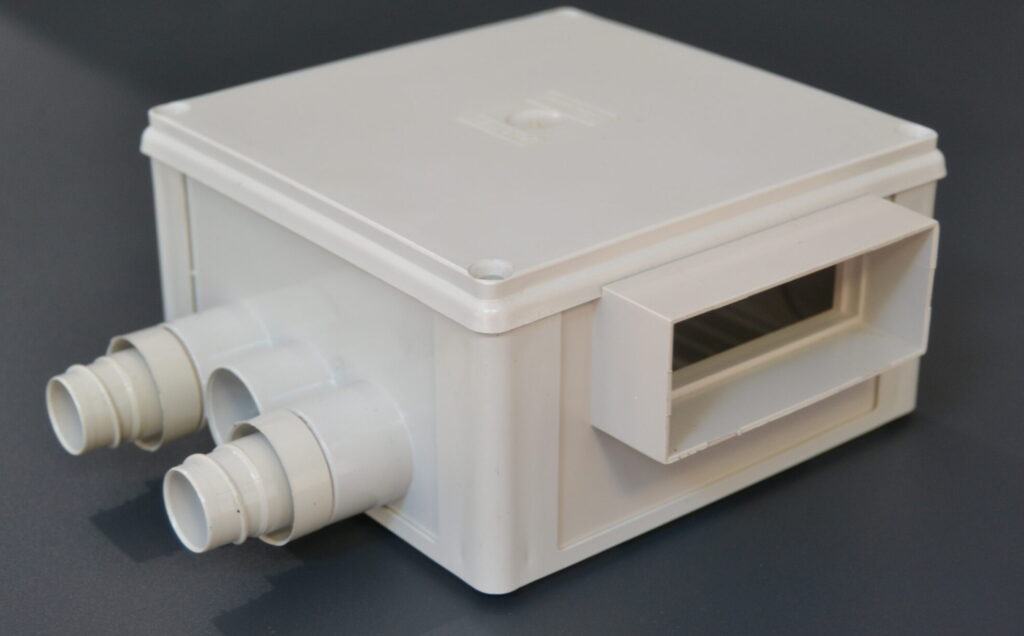

In cases where a raised floor system is necessary, MINTEL’s SCP box is utilized for the distribution of power, telecommunications, and data network pathways within the void created by the raised flooring.
The SCP box, complete with the necessary accessories, enables the creation of protected distribution backbone lines using ø25/ø32 tubes or 70×30/95×30 channels. Cross-interconnection of the boxes with ø25 tubes is possible by inserting the inverted tube inlet.
The connection to the Towers is achieved using conductors protected by spiral sheaths with an internal diameter of 20mm, appropriately fitted with the sheath connector. The same connector, with a snap-in attachment, allows for quick connection between the box and the rigid sleeve inserted into the raised floor panel.
The modular characteristics of the various elements enable a rapid installation of SCP boxes and the channeling network. The system is structured to provide great versatility and ease of modification in subsequent adjustments
